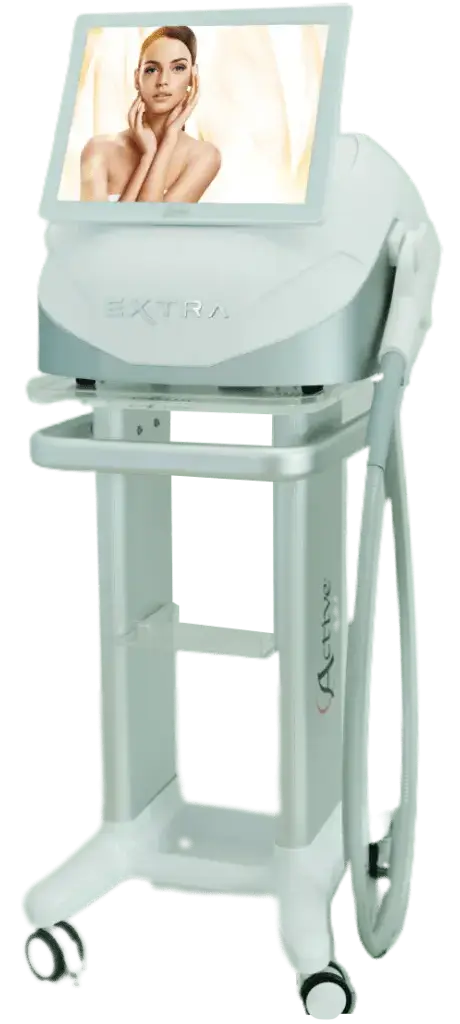

Extra-818m IPL (Intense Pulsed Light)
Extra-818m IPL (Intense Pulsed Light)
The Extra – 818m, based on Active’s GEM-PL technology, sets a specific Pulse Pattern according to the selected treatment type, skin color, skin photosensitivity and treatment depth.
- Portable: Can be placed on any surface
- Facial Treatments: No pain and patient discomfort
- Hair Removal: Excellent with working also on very dark skin and deep hair
- Fast ROI: Affordable - No Hidden Running Costs No consumables, low maintenance requirements.
- Easy To Operate: Intuitive touch screen control.
- Man and Woman: Suitable for all Skin Types & Colors, amazing results.
The Technology
The Extra 818m, based on Active’s GEM-PL technology, sets sets a specific Pulse Pattern according to the selected treatment type, skin color, skin photosensitivity and treatment depth.
The treatment protocols and different pulse patterns take into account the tissue’s TRT (Thermal Relaxation Time) and the combined knowledge accumulated from thousands of treatments done during the years and clinical investigations done to confirm the findings.
The combination of tested treatment protocols with high end engineering makes the Extra – 818m the perfect device for leading clinics.
Safety
To ensure optimal results Active installed a special Processor that prevents overcooling the skin and maintains a uniform low temperature of the “glass” throughout the treatment. This revolutionary system enables the Extra – 818m to provide best results with optimal patient comfort.
Treatments Variety
Hair Removal
Light-based technology removes hair in three ways:
- Ruining the follicle by coagulating the melanocyte and matrix cells.
- Clotting the follicle capillaries with heat energy, which means less food and oxygen to the hair follicle.
- Triggering matrix cells to operate calcium pumps and exhaust the cell’s energy, resulting in inhibition of the cellular metabolism.
Those three processes back up one another, so if one does not provide results, the two others will.
Skin Rejuvenation Treatment
Active’s GEM-PL Technology uses specific dose (Only a few milliseconds per pulse) and intensity of wavelengths, around 420nm to enable optimal results in the production of collagen and elastic fibers.
Pigmentation Treatment
Solar lentigo, or as more commonly known, age spots, sun spots or liver spots are blemishes on the skin associated with age and exposure to UV radiation from the sun. They range in color from light brown to black and are located in areas most often exposed to the sun, particularly the hands, face, shoulders, arms, forehead, and the head if bald. Light-based technology helps in safe and quick removal of those spots.
Acne Treatment
Acne is a cause of suffer and discomfort to many people around the world who have to deal with it daily.
The introduction of light-based technology solutions created a revolution in Ance treatment. The treatments are much shorter, easier and more effective.
Vascular (Facial) Treatment
The appearance of spider-like capillaries is one of the signs time leaves on our skin. They may be found anywhere on our body surface, but usually bother us most when found on our face.
Specifications |
Handpiece | Integrated handpiece |
Pulse Interval | 0.5~2 Seconds |
Output Power | 11-31 joule/cm2, upto 4,000W |
Control | Intuitive touch screen control |
Lamp's Life Span | 200,000 Flashes (Facial) |
Treatment Area | 4.5 cm2 (15*30mm) Facial
|
Wavelength | 420-1100 nm |
Weight | 28Kg |
Dimensions | 44cm x 45cm x 100cm |
Approvals |
* CE MDD | Intl. Medical Standard |
* FDA | US Safety Standard |
* ISO-13485 | Med. Production STD |
* IEC 60-601-1 | Medical Safety STD |
* CFS | Gov. Health Approval |
* CSA | Can. US Safety App |
* TGA | Australian health STD. |
